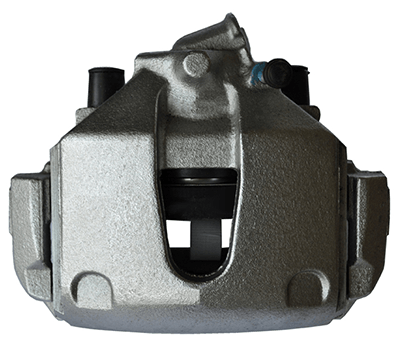

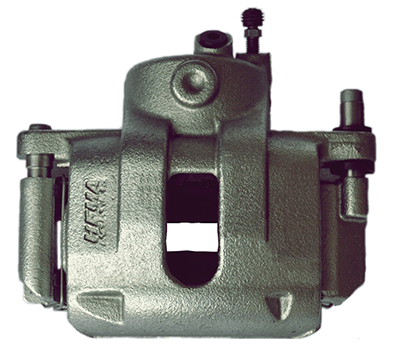

BRAKE CALIPERS

    •  Our factory was established in 1996 to meet brake calipers demands of light commercial vehicle manufactures.
    • In our factory located in Çerkezköy, we produce brake calipers that increase performance and safety and provide product supply to OEM companies operating in the automotive sector.
    • We aim to grow with our customers day by day by producing brake calipers that increase performance and safety for heavy and light commercial vehicles.
    • Studies are carried out with the assistance of skilled engineering experts in order to satisfy the general and particular requirements of the businesses that make up our customers.

Main data

  Disc diameter x Disc thickness / [mm] x [mm]   Ø280 x 24

 Effective radius / [mm]   113

Piston number   2

 Piston diameter / [mm]   Ø48

 Pad area x thickness / [cm²] x [mm]   60 x 12

Weight / [g]   7350

 Housing material   GGG 55

Bracket material   GGG 55

  Main data

Disc diameter x Disc thickness / [mm] x [mm]   Ø280 x 22,5

Effective radius / [mm]   113

Piston number   1

Piston diameter / [mm]   Ø66

Pad area x thickness / [cm²] x [mm]   52 x 12

Weight / [g]   6750

Housing material   GGG 55

Bracket material   GGG 55

   Main data

Disc diameter x Disc thickness / [mm] x [mm]   Ø278 x 24

 Effective radius / [mm]   113

Piston number   1

 Piston diameter / [mm]   Ø54

 Pad area x thickness / [cm²] x [mm]   52 x 11,5

Weight / [g]   5736

 Housing material   GGG 50

Bracket material   GGG 55

Main data

                Disc diameter x Disc thickness / [mm] x [mm]   Ø257 x 20

 Effective radius / [mm]  106,5

Piston number  1

 Piston diameter / [mm]   Ø54

             Pad area x thickness / [cm²] x [mm]  45 x 12,3

Weight / [g]  4787

 Housing material     GGG 50

Bracket material     GGG 55

Main data

               Disc diameter x Disc thickness / [mm] x [mm]   Ø257 x 20

 Effective radius / [mm]   106,5

Piston number   1

 Piston diameter / [mm]   Ø54

 Pad area x thickness / [cm²] x [mm]   45 x 12,3

Weight / [g]   4787

 Housing material   GGG 50

Bracket material   GGG 55
