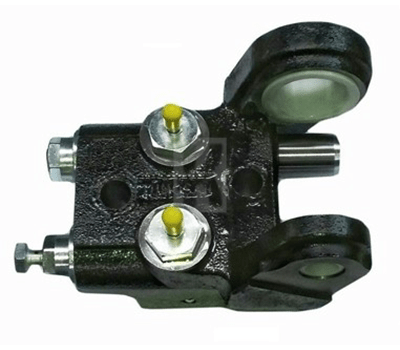

BRAKE CYLINDER

  •  In the production area of our factory, brake cylinders are produced for trucks, agricultural vehicles, construction equipment and commercial vehicles.
  •  Our products are ready for assembly in line with the requests and orders of our customers.
  • It produces brake cylinders between 16-35 cylinder diameters and serves as an important supplier thanks to its advanced technology and modern assembly lines.

  Main data

Cylinder diameter / [mm]   Ø22,2 / Ø16*

Cylinder stroke / [mm]   nom. 36

Lost travel (reservoir port) / [mm]   0,312 – 1,028

Lost travel (stabilization port) / [mm]   2 – 6

Hydraulic port   M10x1-6H

Stabilization port   M10x1-6H

Reservoir port   M12x1-6H

Working pressure / [bar]   max. 105

Burst pressure of housing / [bar]   min. 315

Working temperature   -40°C – (+80°C)

Hydraulic   DOT 4 brake fluid / Mineral oil*

Housing material   GG 25

                  Main data

Cylinder diameter / [mm]   Ø25

Cylinder stroke / [mm]   nom. 33

Lost travel (reservoir port) / [mm]   2,85 – 3,45

Lost travel (stabilization port) / [mm]   1,43 – 3,78

Hydraulic port   M10x1,25

Working pressure / [bar]   max. 100

Burst pressure of housing / [bar]   min. 315

Working temperature    -40°C – (+80°C)

Hydraulic   Mineral oil

Housing material   GG 25

  Main data

Cylinder diameter / [mm]   Ø34,92

Cylinder stroke / [mm]   nom. 14

Hydraulic port   M10x1-6H

Working pressure / [bar]   max. 105

Burst pressure of housing / [bar]   min. 350

Working temperature   -40°C – (+80°C)

Hydraulic   DOT 4 brake fluid

Housing material   GG 25
