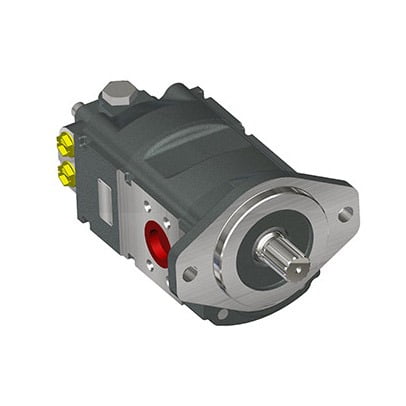

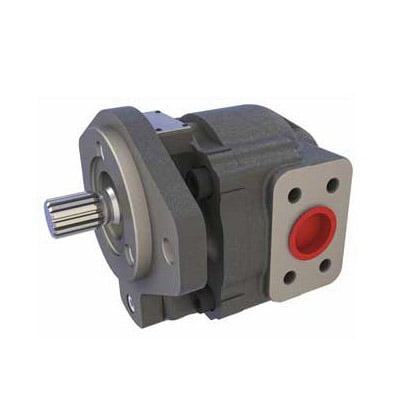

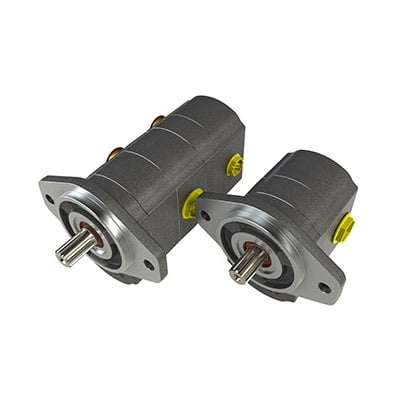

CAST IRON BODY GEAR PUMPS AND MOTORS

At high operating pressure, cast iron gear pumps provide excellent performance, great efficiency, and quiet operation.

Three types of hydraulic motors (1600, 1900, and 2200) are manufactured with a displacement range of 12.38 cm³/rev to 110.8 cm³/rev, and the pumps are produced in six frame sizes (1600, 1900, 2200, X5, QR, and QS) with a displacement range of 12.38 cm³/rev to 240 cm³/rev. The displacement range of compact cast iron body pumps manufactured is 7 cm³/rev to 45.1 cm³/rev.

For many years, Hema Endustri has provided gear pumps to the global mobile and industrial sectors, with a focus on applications for construction and material handling equipment.

Features:

•         Aluminum thrust plates
•         Single tandem, triple pumps are available
•         Common inlets available from tandem and triple pumps
•         Continuous operating pressure up to 250 bar
•         Pressure balanced design for high efficiency
•         Reduced system noise levels
