ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
At high operating pressures, aluminum gear pumps provide excellent performance, great efficiency, and quiet operation.
Aluminum body hydraulic motors are manufactured under three types of series, with displacement ranging from 6.1 cm3/rev to 73 cm3/rev, while aluminum body hydraulic gear pumps are produced in twelve frame sizes with displacement ranging from 1.1 cm3/rev to 116.7 cm3/rev. under 3 type of series
Wide variety of standart options are available to meet specific application requirements.
Features:
Up to 250 bar continuous pressure:
High strength materials and large journal diameters provide low bearing loads for high pressure operation.
Low noise:
1PN-12 teeth gear profile
1PH and 1.5PH: 12 Tooth side gap will be zero backlash with the ground gear profiles and the pressure fluctuation is reduced and the flow is optimized and a very quiet operation is provided
High efficiency:
Pressure balanced bearing blocks assure maximum efficiency under all operation conditions
Application flexibility:
A unique design and application range are provided with cover, connection types and integrated valve applications in accordance with international standards.
![ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS Tables](https://hema-usa.com/wp-content/uploads/2023/09/ALUMINUM-BODY-HYDRAULIC-GEAR-PUMPS-AND-MOTORS-Tables.png.webp)
PRODUCTS ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

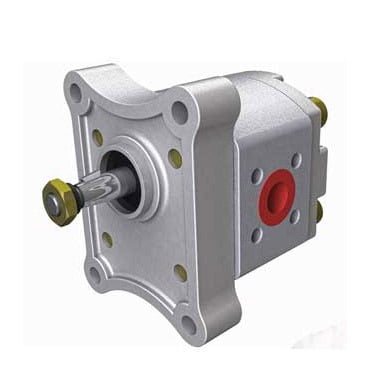

![0.5P Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/0.5P-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![0P1 Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/0P1-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![1PA Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1PA-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![1PN Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1PN-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![1.5P Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1.5P-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

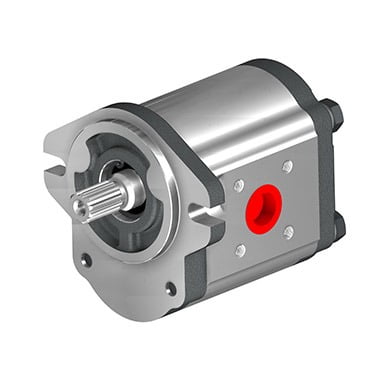

![1.5PN Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1.5PN-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

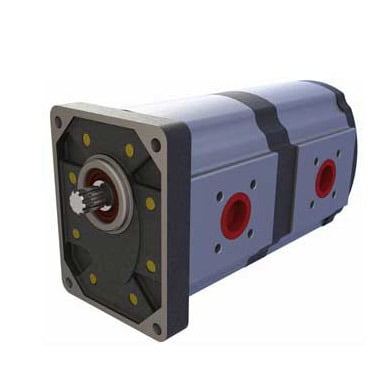

![2P1 Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/2P1-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![2PN Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/2PN-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![Tandem Pumps](https://hema-usa.com/wp-content/uploads/2023/09/Tandem-Pumps-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

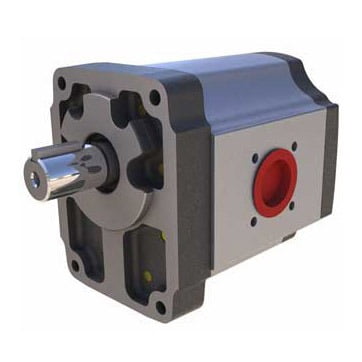

![3P1 Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/3P1-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

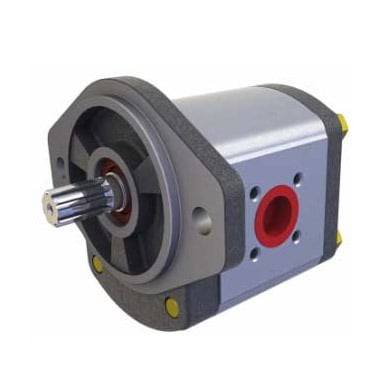

![1PS Low Noise Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1PS-Low-Noise-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![1PH Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1PH-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![1.5PH Pump Series](https://hema-usa.com/wp-content/uploads/2023/09/1.5PH-Pump-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

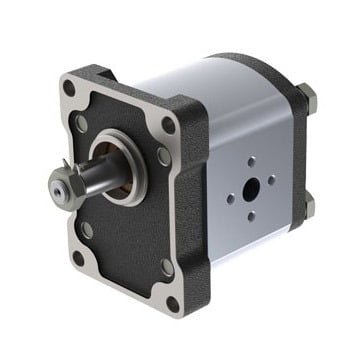

![1MN Motor Series](https://hema-usa.com/wp-content/uploads/2023/09/1MN-Motor-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS

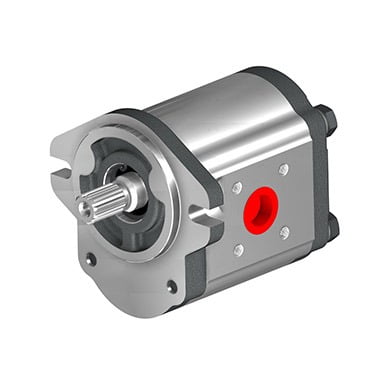

![1.5MN Motor Series](https://hema-usa.com/wp-content/uploads/2023/09/1.5MN-Motor-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
![2MN Motor Series](https://hema-usa.com/wp-content/uploads/2023/09/2MN-Motor-Series-300x300.jpg.webp)
- ALUMINUM BODY HYDRAULIC GEAR PUMPS AND MOTORS
